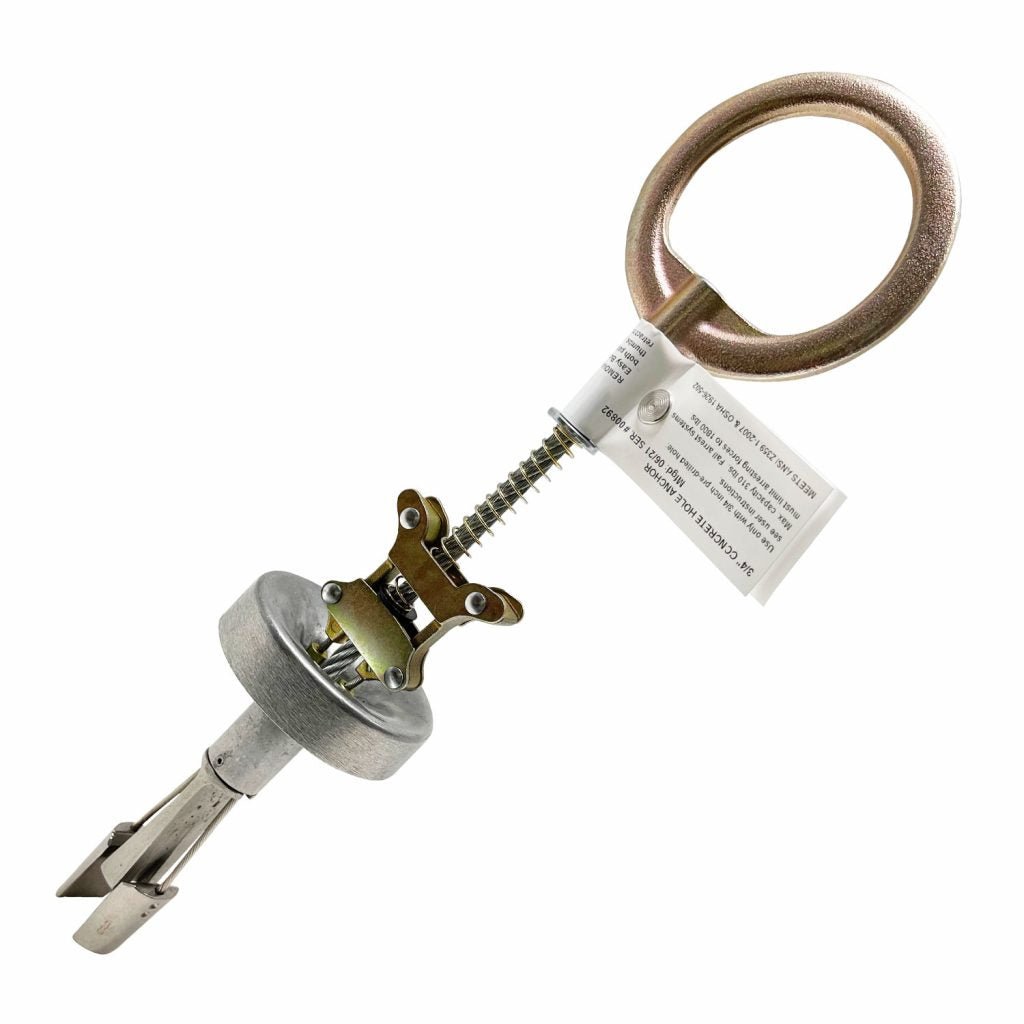

Palmer Safety A3145002 3/4” Reusable Concrete Wedge Anchor

Strong, simple, and reusable, this Concrete Anchor is built for versatility and productivity in demanding jobsite conditions. With a 5,000 lb capacity and a lightweight design, it installs quickly in cured concrete walls or ceilings and works in horizontal, vertical, and overhead applications. The exclusive “Easy Button” release allows instant removal and mobility, so crews spend less time resetting and more time working. Built with durable steel components and tested to OSHA and ANSI standards, it delivers dependable fall protection you can trust.

• 5,000 lb minimum breaking strength
• Fits 3/4” diameter, 3.5” min. depth drilled hole
• For cured concrete walls/ceilings, min. 5.9” thick
• User capacity: 130–425 lbs. max
• Quick, one-hand installation
• “Easy Button” trigger for fast removal and reuse
• Forged steel eye connection point
• Zinc-plated alloy steel and stainless steel construction
• Works in horizontal, vertical, and overhead applications
• Lightweight design – only 0.8 lbs.
• Overall length: 10.75”
• Cable: 0.24” galvanized steel diameter
• Meets OSHA 1926-502, ANSI Z359.1, ANSI A10.32
