Miller Stainless Steel/Alum. Adjustable Beam Anchor

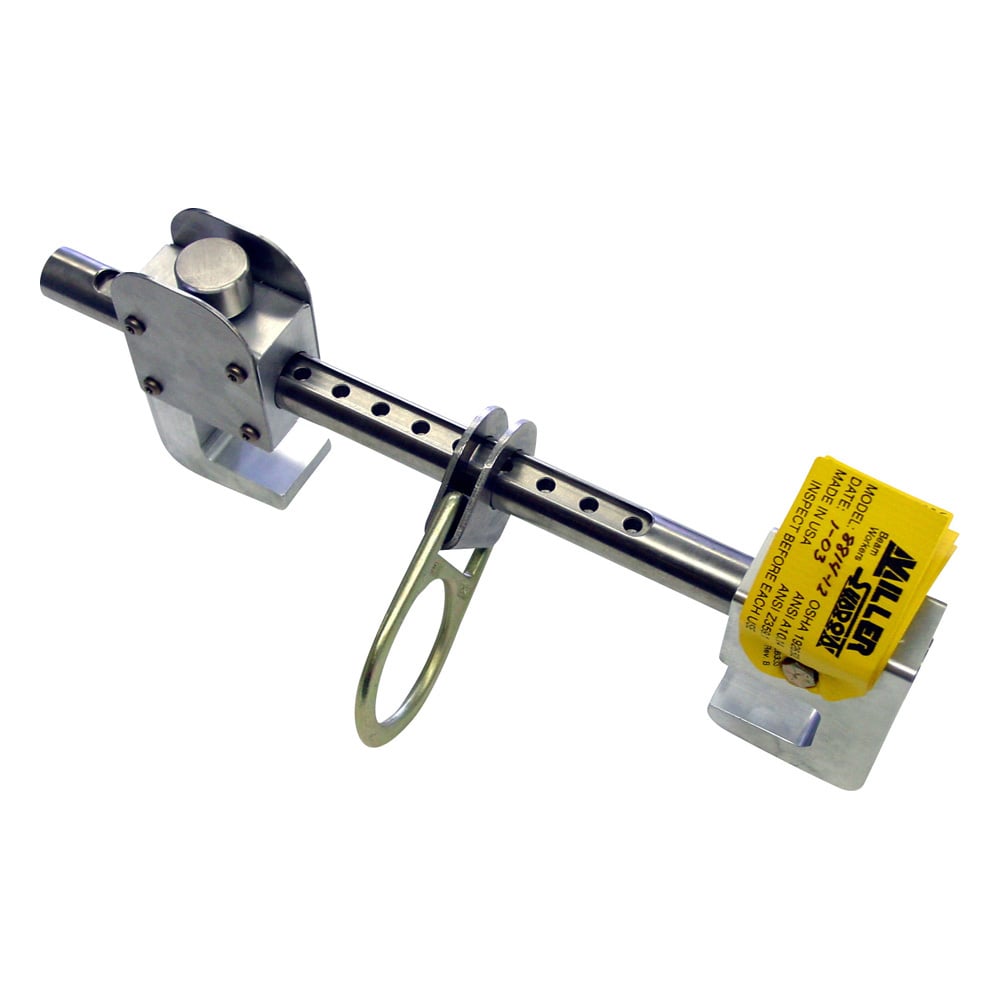

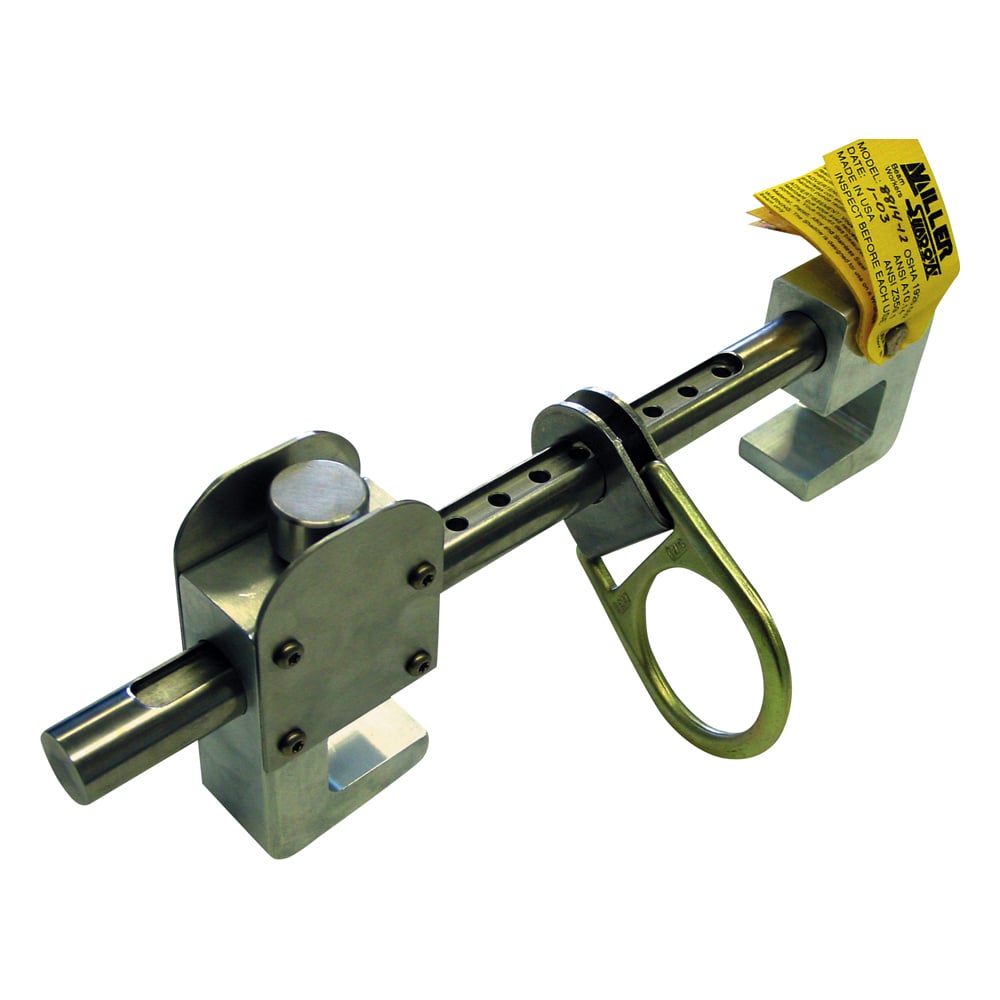

Keep workers safe at altitude with the 8814-12/ stainless steel/aluminum adjustable beam anchor. This quality made system is designed to connect to and lock around the flanges of either I or W steel beams. The beauty of this design is that the entire unit can slide along the beam as needed, without having to detach and reattach anchor points. This minimizes potentially dangerous situations. An adjustable sliding arm made from stainless steel allows the user to set the aluminum foot ends in position before locking them in place with the hand operated plunger. The drop forged stainless steel D-ring provides a secure and super strong anchor point to connect harness lines and lanyards. This particular model fits flange width ranges from 4" to 12" and will wrap over flanges thicknesses up to 1-1/4". The system has passed the rigorous ASTM 50 hour salt spray tests with flying colors and comes fitted with a set of note labels that show: inspection, type, model, date, warnings and certifications.

• Adjustable beam anchor
• Connects to: I and W beams
• Slides along beam
• Flange width range 4" to 12"
• Flange thickness range: up to 1-1/4"
• Foot ends: aluminum
• Support shaft: stainless steel
• Hand-retractable plunger: stainless steel
• D-ring attachment: plated, drop forged steel and stainless steel
• Weight: 6.8 lbs. (3.1 kg)
• Steel tensile strength 5,000 lbs. (22kN) min.
• Labels show: inspection, type, model, date, warnings, certifications
• 310 lbs (140.6kg) working capacity
• All hardware meets ASTM fifty-hour salt spray test standards
• Complies with ANSI A10.14, Z359.1 and OSHA 1926.502 standards
• For use on:
  • Construction
  • Projects at altitude
